Industrial and Commercial Sectional Warehouse Doors
Superior Performance & Built To Last
Overhead Door Company of Southern California™ offers a comprehensive line of Insulated Sectional Steel Doors encompassing the industry’s most complete selection of panel profiles, gauges, track styles, and hardware for commercial sectional door systems
Sectional Warehouse Doors to satisfy applications where Durability,
Longevity & Durability are Top Priorities.
Our Sectional Warehouse Doors provide a highly efficient design for strength and longevity in demanding commercial settings. They feature a full 2” thickness for ultimate strength and durability. Optional insulation consists of 1 5/16” expanded polystyrene throughout the door. Both steel and polylaminate backer choices are available to ensure these models are well-suited for a wide range of applications.
Ideal Applications Include
Manufacturing
Warehouse Solutions
Public Facilities
Sectional Warehouse Doors Overview
Sectional Thickness 2″
Section Sizes 19″, 21″, 24″
Exterior Surface Ribbed
Standard Springs 10,000 cycle
Exterior Color White or Brown on Models 403/404/405/406
Joint Profile Tongue-and-groove
Thermal Efficiency – Model 402, 404, 406
R-V value* 7.64
Warranty 1Year Limited
Panel Option
Ribbed Panel
Lite Options
Vision Lites
Full-view Lites
Color Options
White Smooth Brown Smooth (Models 403/404/405/406)
White Stucco Embossed Brown Stucco Embossed
(Models 405/406) (Models 405/406)
Options
- Chain hoist operation
- Motor operation
- High cycle spring (25K, 50K, 100K)
- 3″ track option
- Solid shafts
- Perimeter weatherseal
- Broken cable devices
- Safety edges
- Safety photo eyes
- Special track designs
- Simple Install System
..

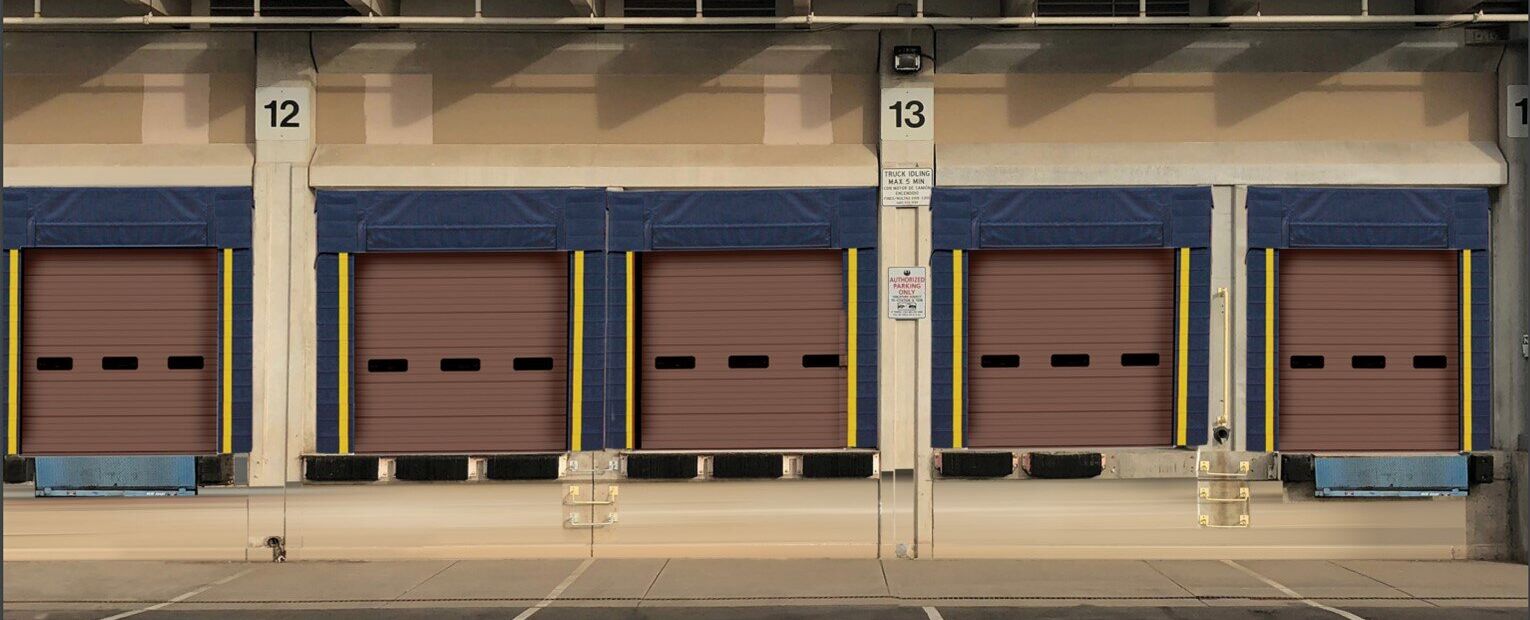

Model 401, Brown Smooth finish, Vision Lites
..
Model 405, White Smooth finish, Vision Lite
..
Model 405, White Smooth finish, Vision Lites
Sectional Warehouse Doors Model Comparison
| Model | 401 | 402 | 403 | 404 | 405 | 406 |
| Exterior Steel Gauge | 20 Gauge | 20 Gauge | 24 Gauge | 24 Gauge | Nom. 24 Gauge | Nom. 24 Gauge |
| Section Thickness | 2″ | 2″ | 2″ | 2″ | 2″ | 2″ |
| Joint Profile | Tongue & Groove | Tongue & Groove | Tongue & Groove | Tongue & Groove | Tongue & Groove | Tongue & Groove |
| Insulation | Expanded Polystyrene | N/A | Expanded Polystyrene | N/A | Expanded Polystyrene | |
| Interior Backer Options | N/A | Vinyl or Steel | N/A | Vinyl or Steel | N/A | Vinyl or Steel |
| Max. Width | 30’2″ | 30’2″ | 30’2″ | 30’2″ | 20’2″ | 20’2″ |
| Max. Height | 22’1″ | 22’1″ | 22’1″ | 22’1″ | 16’1″ | 16’1″ |
| Section Sizes | 19″, 21″, 24″ | 19″, 21″, 24″ | 19″, 21″, 24″ | 19″, 21″, 24″ | 19″, 21″, 24″ | 19″, 21″, 24″ |
| R-value* | N/A | 7.64 | N/A | 7.64 | N/A | 7.64 |
| Exterior Surface | Ribbed | Ribbed | Ribbed | Ribbed | Ribbed | Ribbed |
| Standard Spring-Cycles | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Warranty | 1-Year Limited | 1-Year Limited | 1-Year Limited | 1-Year Limited | 1-Year Limited | 1-Year Limited |
*R-Value is a measure of thermal efficiency. The higher the R-Value the greater the insulating properties of the door. Overhead Door Corporation uses a calculated door curtain R-Value for our insulated doors.
